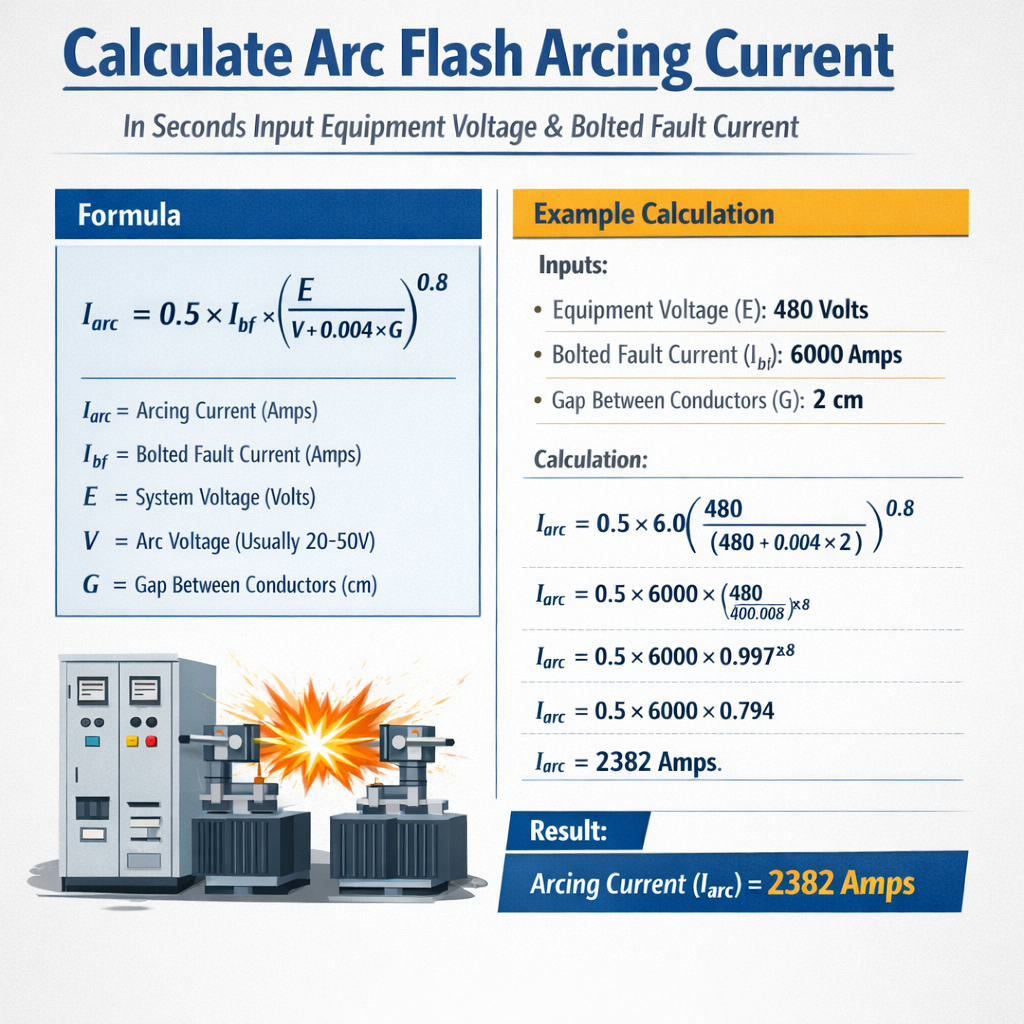

Calculate Arc Flash Arcing Current in Seconds: Input Equipment Voltage & Bolted Fault Current

This article describes calculating arc flash arcing current from equipment voltage and bolted fault current.

Practical methods, formulas, examples, and standards compliance provided for engineers and safety professionals worldwide practice.

Arc Flash Arcing Current Calculator (from Equipment Voltage and Bolted Fault Current)

Equipment voltage (V)

Bolted fault current (kA rms)

Advanced options

Equipment type (dimensionless factor) Low-voltage switchgear / MCC (factor 1.00) Panelboard / load center (factor 1.05) Open air conductors (factor 0.90) Medium-voltage metal-clad switchgear (factor 0.80)

Electrode configuration (dimensionless factor) Vertical conductors in box (VCB, factor 1.00) Vertical conductors in box, barrier (VCBB, factor 0.90) Horizontal conductors in box (HCB, factor 1.10) Open air (VOA, factor 0.85)

Override arc current factor F (dimensionless)

You can upload an equipment nameplate or one-line diagram photo to suggest typical voltage and fault current values.

📷 Rellenar datos con foto IA

⚡ More electrical calculators Reiniciar Copiar Compartir

Enter equipment voltage and bolted fault current to estimate arcing current.

🧠 Explicar mi resultado 🔍 Revisar mis datos

Formulas used (simplified arcing current estimation)

This calculator provides a simplified engineering estimate of arcing current based on the bolted three-phase short-circuit current and empirical arc factors. It is intended for preliminary arc-flash assessments; detailed studies should use full IEEE 1584 methods.

Main relationship:
I_arc = F_total × I_bolted

• I_arc: estimated arcing current at the fault location (kA rms).
• I_bolted: three-phase bolted fault current at the same location (kA rms).
• F_total: dimensionless arc current factor (typically between 0.5 and 0.9).

If no manual override factor is entered, the total factor is built as:
F_total = F_voltage × F_equipment × F_electrode

• F_voltage (automatic, from voltage):
  • For equipment voltage V ≤ 1 kV: F_voltage = 0.85
  • For 1 kV < V ≤ 15 kV: F_voltage = 0.70
  • For V > 15 kV: F_voltage = 0.50
• F_equipment (from “Equipment type” selection, default 1.00): typical range 0.80–1.05.
• F_electrode (from “Electrode configuration” selection, default 1.00): typical range 0.85–1.10.

If a manual override factor F is entered in “Override arc current factor F”, then:
F_total = F (the automatic factors are ignored).

Typical reference values

Voltage class	Typical equipment	Typical bolted fault current (kA rms)	Typical arcing factor F_total	Approx. I_arc / I_bolted (%)
208–480 V	LV panelboard / MCC	10–35	0.80–0.95	80–95%
480–600 V	LV switchgear	25–65	0.75–0.90	75–90%
4.16–15 kV	MV metal-clad switchgear	20–40	0.55–0.75	55–75%
Above 15 kV	HV switchgear / open air bus	10–40	0.40–0.65	40–65%

Frequently asked questions

Does this calculator implement the full IEEE 1584 arcing current model?

No. This tool uses a simplified proportional approach where arcing current is estimated as a fraction of the bolted fault current using empirical factors. The detailed IEEE 1584-2018 model requires additional inputs such as conductor gap, enclosure size and precise electrode configuration, and should be implemented in specialized software for formal arc-flash studies.

Which value should I use for the bolted fault current?

Use the three-phase symmetrical bolted short-circuit current at the terminals of the equipment being evaluated, consistent with your short-circuit study (same base voltage and X/R assumptions). This is typically obtained from short-circuit calculations or power system analysis software, not from the upstream device interrupting rating alone.

When is it appropriate to override the arc current factor F in the advanced options?

You should override F when you already have an arcing current value calculated by a more detailed method (for example, IEEE 1584) and want to back-calculate or compare, or when your utility or corporate standards specify a particular percentage of bolted fault current to be used for arcing current at a given voltage level or equipment type.

Can I use this arcing current directly for incident energy and PPE selection?

The arcing current estimated here is only one component of a complete arc-flash hazard analysis. Incident energy, arc duration, protective device characteristics, working distance and enclosure dimensions must all be considered. For PPE selection and labeling, follow IEC/IEEE 1584 or applicable local standards and use validated software or detailed calculations.

Background and practical scope

Arc flash hazard assessment requires accurate estimation of the arcing current (I_arc) because incident energy and PPE categories depend primarily on the magnitude of that current and the arcing duration (seconds). This article focuses on how to derive arcing current from equipment voltage and bolted fault current, explains conservative approximations, and shows how the time (seconds) is used to translate arcing current into energy exposure. Content is oriented to low-voltage distribution and common industrial equipment (120 V through 600 V and typical medium-voltage switchgear). Where relevant the article references the empirical IEEE 1584 approach and highlights simplified engineering approximations suitable for preliminary calculations or validation of detailed models.

Fundamental definitions and relationships

Bolted fault current (I_bf)

Bolted fault current is the theoretical symmetrical three-phase short-circuit current at the point of fault assuming no arcing impedance. For a three-phase system, the bolted fault current can be calculated from the equivalent source impedance Z_s as:

I_bf,3φ = V_LL / (√3 × Z_s)

Variables:

• V_LL — line-to-line nominal system voltage (volts).
• Z_s — equivalent source impedance for the fault point (ohms).
• I_bf,3φ — three-phase bolted fault current (amperes).

For single-phase or phase-to-ground bolted faults the relevant voltage is the phase voltage V_ph (V_ph = V_LL / 1.732 for Y systems) and the formula simplifies to:

I_bf,1φ = V_ph / Z_s

Arcing current (I_arc) and arcing impedance

Arcing current is the current that actually flows during an electrical arc event. The arc behaves as a non-linear impedance; its effective impedance is typically higher than a bolted fault but is strongly dependent on:

• System voltage (V), line configuration (single-phase vs three-phase).
• Opening (electrode) gap and conductor geometry inside the equipment.
• Enclosure size and internal obstacles that influence plasma formation and cooling.
• Grounding method and fault type.

A widely used engineering simplification for preliminary calculations is to express I_arc as a fraction (ratio R) of the bolted fault current:

I_arc = R × I_bf

Variables:

• I_arc — arcing current (amperes).
• R — arcing current ratio (dimensionless), empirically determined.
• I_bf — bolted fault current (amperes), as calculated above.

R is not a constant across all systems; use of IEEE 1584-2018 empirical models is preferred for design-grade accuracy. When IEEE-calculation tools are not available, conservative R values from industry practice can be applied, but always document assumptions.

The IEEE 1584 empirical approach vs simplified ratio method

IEEE 1584 model (high accuracy)

IEEE 1584-2018 provides empirical equations derived from test data that compute arc current, arc power, and incident energy as functions of:

• System voltage (V)
• Bolted fault current (I_bf)
• Enclosure type and dimensions
• Electrode gap
• Grounding (solid, resistive)
• Working distance

The IEEE method uses nonlinear regression models (logarithmic regression) to compute I_arc and incident energy. For compliance and safety-critical calculations, use a validated IEEE 1584 calculator (software or certified spreadsheet) and the exact IEEE coefficients.

Simplified ratio method (engineering estimate)

For rapid assessments or sanity checks, the simplified formula below is commonly used:

I_arc = R × I_bf

This method is conservative when R is selected from conservative tables calibrated from IEEE and field data. Use of R is acceptable for early-stage hazard screening and bench-checking of more sophisticated models.

Typical arcing current ratios (R) for common equipment

Below are conservative typical R ranges drawn from IEEE industry guidance, peer-reviewed test summaries, and engineering practice. These are provided for engineering estimation only; specific project conditions may require IEEE 1584 calculations. Notes:

• Values are ratios R = I_arc / I_bf. Use lower bound for conservative (smaller arc currents) or upper bound for worst-case arc currents depending on objective.
• Open-air arcs often approach bolted fault current due to minimal confinement losses; enclosed arcs typically reduce arcing current.
• Electrode gap is a critical variable—larger gaps increase arc impedance and reduce I_arc.

Formulas and variable explanations (HTML only)

Below are essential formula expressions written using only HTML elements and standard typography. Explanations and typical values are provided.

Three-phase bolted fault current (symmetrical):

I_bf,3φ = V_LL / (1.732 × Z_s)

Variables:

• V_LL — line-to-line voltage (V). Typical values: 208, 480, 600 V.
• Z_s — equivalent source impedance (ohms). Typical small industrial values: 0.002–0.02 Ω.

Single-phase bolted fault (phase-to-ground):

I_bf,1φ = V_ph / Z_s

Arcing current estimate (simplified):

I_arc = R × I_bf

Variables:

• I_arc — arcing current (A).
• R — arcing current ratio, see tables above (dimensionless).

Working distance conversions (if needed):

D_m = D_in × 0.0254

Variables:

• D_in — working distance in inches (typical 18 in = 0.4572 m).
• D_m — working distance in meters.

Simple proportional incident energy relationship (engineering approximation):

E ∝ I_arc² × t

Explanation:

• Where E is incident energy (arbitrary proportional units). This relation indicates incident energy scales approximately with square of arcing current and linearly with arc duration (seconds).
• For regulatory compliance use IEEE 1584 incident energy formulas or validated software; the proportional relation is useful for sensitivity analysis only.

Step-by-step calculation procedure

Follow this sequence to compute a conservative estimate of I_arc from voltage and bolted fault data:

1. Confirm system voltage and configuration (three-phase Y/Δ, single-phase). Record V_LL or V_ph.
2. Obtain or calculate the equivalent source impedance Z_s at the equipment. For transformer-supplied panels, include transformer impedance, feeder impedance, and utility contribution.
3. Calculate bolted fault current:
   • Three-phase: I_bf,3φ = V_LL / (1.732 × Z_s).
   • Single-phase: I_bf,1φ = V_ph / Z_s.
4. Select a conservative arcing ratio R based on equipment voltage, enclosure, and electrode gap (use table values or IEEE 1584 if available).
5. Compute I_arc = R × I_bf.
6. For incident energy sensitivity, apply E ∝ I_arc² × t or preferably use IEEE 1584 to convert I_arc and t (seconds) into incident energy (cal/cm²).

Examples — worked calculations

Below are two complete, realistic examples. Each shows conversion of voltage and source impedance to bolted fault current, selection of R, calculation of I_arc, and basic discussion of how seconds (arc duration) affects energy.

Example 1 — 480 V three-phase switchboard (industrial)

Problem statement:

• System: 480 V three-phase, Y-connected distribution to switchboard.
• Equivalent source impedance at point of fault: Z_s = 0.0055 Ω.
• Equipment: enclosed switchboard with medium electrode gap (~15 mm).
• Protective device clearing time for the worst case: t = 0.5 seconds (device fuse or breaker fault clearing).
• Working distance: 18 in (0.4572 m).

Step 1 — bolted fault calculation:

I_bf,3φ = V_LL / (1.732 × Z_s)

Substitute:

I_bf,3φ = 480 / (1.732 × 0.0055)

Compute denominator: Compute I_bf:

I_bf,3φ ≈ 480 / 0.009526 ≈ 50,393 A ≈ 50.4 kA

Step 2 — choose R from table:

• For 480 V enclosed switchboard, medium gap, conservative R ≈ 0.7 (typical middle of range 0.50–0.75).

Step 3 — compute arcing current:

I_arc = R × I_bf = 0.70 × 50,393 ≈ 35,275 A ≈ 35.3 kA

Step 4 — interpret seconds (t) effect:

• Using the proportional relation E ∝ I_arc² × t, energy scales linearly with t. Doubling clearing time doubles incident energy.
• Relative energy baseline (arbitrary units): E ∝ (35.3)² × 0.5 ≈ 624.6 × 0.5 ≈ 312.3 (kA²·s in arbitrary units).

Discussion:

• I_arc ≈ 35.3 kA is high; precise incident energy must be calculated with IEEE 1584 to determine PPE categories. This example shows the method from voltage and Z_s to I_arc and how the time in seconds directly multiplies the energy exposure.
• Reducing clearing time (faster protection) or increasing R conservatively (selecting a smaller R if you want lower I_arc) affects the result—document choices.

Example 2 — 120/208 V three-phase motor control center (MCC)

Problem statement:

• System: 208 V line-to-line, 120 V phase-to-neutral (wye) MCC feeding motors.
• Equivalent source impedance at MCC: Z_s = 0.006 Ω for phase-to-ground faults.
• Equipment: enclosed MCC with small electrode gaps near contacts (~6 mm).
• Protective device clearing time t = 0.2 seconds (faster upstream breaker trip).

Step 1 — choose appropriate voltage for phase-to-ground bolted fault:

V_ph = V_LL / 1.732 = 208 / 1.732 ≈ 120 V

Step 2 — bolted fault current:

I_bf,1φ = V_ph / Z_s = 120 / 0.006 = 20,000 A = 20 kA

Step 3 — choose R:

• For 120–240 V MCC with small electrode gap, typical R ≈ 0.45 (range 0.30–0.60).

Step 4 — compute I_arc:

I_arc = 0.45 × 20,000 = 9,000 A = 9 kA

Step 5 — seconds (t) effect on relative energy:

Relative E ∝ (9)² × 0.2 = 81 × 0.2 = 16.2 (arbitrary units)

Discussion:

• I_arc = 9 kA for this MCC scenario; the incident energy with t = 0.2 s will be significantly less than Example 1 because both I_arc and t are smaller.
• Still, precise E (cal/cm²) and PPE requirements must be derived from IEEE 1584 or approved software.

Tables of common values and device clearing times

This table lists common bolted fault currents for sample source impedances at representative voltages. Use as a quick reference when Z_s is known. Additional table: sample protective device clearing times and their impact on incident energy scaling (qualitative).

Validation, uncertainty, and practical recommendations

• For compliance-level arc flash studies, always use IEEE 1584-2018 methodology implemented in validated software or certified calculation tools. The R-based approach is only for rapid estimates or cross-checks.
• Document assumptions: source impedance, R value chosen, electrode gap, enclosure type, and protective device clearing time (seconds). Auditors and safety reviewers will require traceability.
• Conduct field measurements (short-circuit tests, impedance measurement) where practical to reduce uncertainty in Z_s.
• Apply conservative assumptions for worker safety: if uncertain, use higher I_arc and longer clearing time to size PPE or engineering controls conservatively.
• Consider mitigation: faster fault clearing (reduces arc duration in seconds), current-limiting devices, arc-resistant switchgear, and remote racking to reduce worker exposure.

Standards, normative references, and further reading

The following standards and authority documents describe accepted methods, test procedures, and mandatory workplace requirements:

• IEEE 1584-2018 — IEEE Guide for Performing Arc-Flash Hazard Calculations. (Primary empirical model for arcing current and incident energy.) https://standards.ieee.org/standard/1584-2018.html
• NFPA 70E — Standard for Electrical Safety in the Workplace. (Workplace safety requirements and PPE selection criteria.) https://www.nfpa.org/70E
• IEC 61482-1-1 — Live working — Protective clothing against the thermal hazards of an electric arc. (International garment testing standard.) https://www.iso.org/standard/62443.html (IEC store links via webstore.iec.ch)
• OSHA — Electrical Safety topics, including arc flash information. https://www.osha.gov/arc-flash
• IEEE PES publications and IEEE Xplore — for technical papers on arc modeling and field test data. https://ieeexplore.ieee.org

Note: Always obtain the latest editions of standards and consult your organization’s compliance and safety officers.

Practical checklist for implementing arcing current calculations

Use this checklist when preparing calculations or specifying protective measures:

1. Record nominal equipment voltage and configuration (V_LL, delta/wye).
2. Obtain Z_s from system short-circuit study; measure if uncertain.
3. Determine fault type (3φ, 1φ phase-to-ground) and use correct voltage for I_bf formula.
4. Choose the method: IEEE 1584 (preferred) or ratio method (document R and rationale).
5. Compute I_arc, document units and rounding.
6. Apply arc duration (seconds) from protective device curves to estimate incident energy or use IEEE tools.
7. Specify mitigation and PPE based on incident energy from validated calculations.

Limitations and cautions

• The R-ratio approach cannot substitute for IEEE 1584 where compliance or certification is required.
• Small differences in Z_s lead to large changes in I_bf and thus I_arc because currents scale approximately with 1 / Z_s. Verify impedances carefully.
• Arc behavior is stochastic; measured test values can vary. Use conservative engineering judgment and appropriate safety margins.

Summary of key actionable equations and definitions

• Three-phase bolted fault: I_bf,3φ = V_LL / (1.732 × Z_s)
• Single-phase bolted fault: I_bf,1φ = V_ph / Z_s
• Arcing current estimate: I_arc = R × I_bf (use IEEE 1584 when available)
• Incident energy sensitivity: E ∝ I_arc² × t (qualitative scaling; use IEEE 1584 for numeric energy)

References and authoritative resources listed above provide full empirical coefficients and validated calculators. For any compliance-level analysis, employ IEEE 1584 calculators or vendor-certified software and involve qualified electrical engineers.
