Converting Volt-Amperes (VA) to Horsepower (HP) is essential for calculating motors’ power accurately. This guide explains VA to HP conversions for single-phase, two-phase, and three-phase systems comprehensively.
VA to HP Calculator (Single, Two, Three Phase)
Conversion Tables: VA to HP
The conversion from VA to HP varies based on the phase system and power factor (PF). Below are detailed tables for common scenarios:
Single-Phase Systems
| VA | HP (Approx.) |
|---|---|
| 10 | 0.0134 |
| 20 | 0.0268 |
| 50 | 0.067 |
| 100 | 0.134 |
| 200 | 0.268 |
| 500 | 0.67 |
| 1000 | 1.34 |
| 2000 | 2.68 |
| 5000 | 6.7 |
Two-Phase Systems
| VA | HP (Approx.) |
|---|---|
| 10 | 0.0268 |
| 20 | 0.0536 |
| 50 | 0.134 |
| 100 | 0.268 |
| 200 | 0.536 |
| 500 | 1.34 |
| 1000 | 2.68 |
| 2000 | 5.36 |
| 5000 | 13.4 |
Three-Phase Systems
| VA | HP (Approx.) |
|---|---|
| 10 | 0.0402 |
| 20 | 0.0804 |
| 50 | 0.201 |
| 100 | 0.402 |
| 200 | 0.804 |
| 500 | 2.01 |
| 1000 | 4.02 |
| 2000 | 8.04 |
| 5000 | 20.1 |
Note: These values are approximate and assume a power factor of 1. Actual values may vary based on the specific power factor.
Conversion Formulas and Detailed Explanations
1. Single-Phase AC Systems

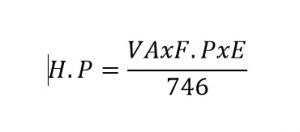

For single-phase alternating current (AC) systems, the formula to convert VA to HP is:
HP = (VA × PF) / 746
Where:
- HP = Horsepower
- VA = Volt-Amperes
- PF = Power Factor (a dimensionless number between 0 and 1)
- 746 = Conversion factor from watts to horsepower
Example: For a motor with 500 VA and a power factor of 0.9:
HP = (500 × 0.9) / 746 ≈ 0.54 HP
2. Two-Phase AC Systems
Two-phase systems are less common but can be encountered in certain industrial applications. The formula is similar to single-phase systems:
HP = (VA × PF) / 746
Example: For a two-phase system with 1000 VA and a power factor of 0.85:
HP = (1000 × 0.85) / 746 ≈ 1.14 HP
3. Three-Phase AC Systems
Three-phase systems are widely used in industrial and commercial settings due to their efficiency. The formula to convert VA to HP in a three-phase system is:
HP = (VA × PF × √3) / 746
Where:
- √3 ≈ 1.732 = Square root of 3, accounting for the phase difference
Example: For a three-phase system with 5000 VA and a power factor of 0.95:
HP = (5000 × 0.95 × 1.732) / 746 ≈ 6.53 HP
Note: In some cases, the formula may omit the √3 factor, depending on the specific configuration and voltage measurements.
Real-World Applications and Examples
Example 1: Single-Phase Residential Motor
A residential air conditioning unit operates on a 120V single-phase system with a current draw of 10 amps and a power factor of 0.85. To determine the horsepower:
- Calculate Apparent Power (VA): VA = Voltage × Current = 120V × 10A = 1200 VA
- Convert VA to HP: HP = (1200 × 0.85) / 746 ≈ 1.36 HP
Conclusion: The air conditioning unit has a power rating of approximately 1.36 HP.
Example 2: Three-Phase Industrial Motor
An industrial motor operates on a 480V three-phase system with a current draw of 15 amps and a power factor of 0.9. To determine the horsepower:
- Calculate Apparent Power (VA): VA = √3 × Voltage × Current = 1.732 × 480V × 15A ≈ 12,441 VA
- Convert VA to HP: HP = (12,441 × 0.9) / 746 ≈ 15.02 HP
Conclusion: The industrial motor has a power rating of approximately 15.02 HP.
Practical Considerations and Best Practices
- Power Factor Awareness: Always consider the power factor when converting VA to HP, as it significantly affects the accuracy of the calculation.
- Voltage Measurements: Ensure that voltage measurements correspond to the correct phase configuration (line-to-line or line-to-neutral) when applying formulas.
- Efficiency Considerations: In some applications, especially when calculating real power, efficiency may need to be factored into the conversion.
- Manufacturer Specifications: Refer to manufacturer datasheets and nameplate information for precise power ratings and conversion factors.
Extended Conversion Tables with Common Industrial Values
Single-Phase Systems (VA → HP)
| VA | PF | HP (Approx.) |
|---|---|---|
| 100 | 0.8 | 0.11 |
| 200 | 0.85 | 0.23 |
| 500 | 0.9 | 0.60 |
| 750 | 0.95 | 0.96 |
| 1000 | 0.85 | 1.14 |
| 2000 | 0.9 | 2.41 |
| 3000 | 0.95 | 3.82 |
| 5000 | 0.85 | 5.70 |
| 7500 | 0.9 | 9.09 |
| 10000 | 0.95 | 12.77 |
Notes: PF (Power Factor) is essential. Residential motors usually have PF 0.8–0.9; industrial motors may be 0.85–0.95.
Two-Phase Systems (VA → HP)
| VA | PF | HP (Approx.) |
|---|---|---|
| 100 | 0.8 | 0.11 |
| 200 | 0.85 | 0.23 |
| 500 | 0.9 | 0.60 |
| 750 | 0.95 | 0.96 |
| 1000 | 0.85 | 1.14 |
| 2000 | 0.9 | 2.41 |
| 3000 | 0.95 | 3.82 |
| 5000 | 0.85 | 5.70 |
| 7500 | 0.9 | 9.09 |
| 10000 | 0.95 | 12.77 |
Notes: Two-phase systems are rare; often encountered in older industrial setups or specialty machinery.
Three-Phase Systems (VA → HP)
| VA | PF | HP (Approx.) |
|---|---|---|
| 1000 | 0.8 | 1.86 |
| 2000 | 0.85 | 3.96 |
| 5000 | 0.9 | 10.44 |
| 7500 | 0.95 | 16.64 |
| 10000 | 0.85 | 19.72 |
| 15000 | 0.9 | 31.34 |
| 20000 | 0.95 | 44.12 |
| 30000 | 0.85 | 46.06 |
| 50000 | 0.9 | 98.73 |
| 75000 | 0.95 | 165.84 |
Notes: Three-phase motors dominate industrial environments due to higher efficiency and reduced current per phase.
Advanced Formulas with Variable Explanations
Single-Phase AC System
- VA (Volt-Amperes): Apparent power, product of voltage (V) × current (A).
- PF (Power Factor): Ratio of real power to apparent power; typical 0.8–0.95.
- 746: Watts per mechanical HP.
Two-Phase AC System
- Two-phase differs only in configuration; calculation similar to single-phase.
- Power factor adjustments are equally important.
Three-Phase AC System
- √3 (≈1.732): Accounts for the three-phase voltage line-to-line relationship.
- Correct phase voltage must be applied: line-to-neutral vs line-to-line.
Considerations for Voltage and Current
- Line-to-Line Voltage (V_L): Voltage measured between any two lines.
- Line-to-Neutral Voltage (V_P): Voltage measured from a line to neutral;
- Current (I): Current per phase; must correspond with voltage measurement used.
Real-World Industrial Applications

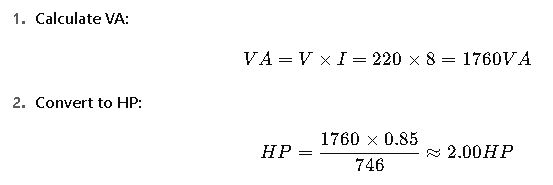

Example 3: Single-Phase Water Pump
A residential water pump operates at 220V, 8A, PF 0.85
- Application: Confirms motor size matches hydraulic requirements for household water pumping.

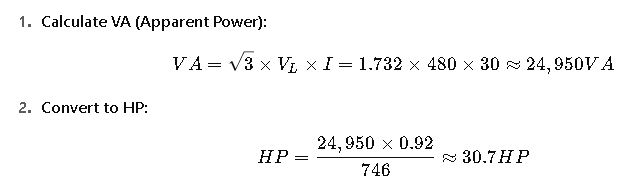

Example 4: Three-Phase Conveyor Motor
An industrial conveyor uses 480V three-phase, 30A, PF 0.92.
- Application: Ensures correct motor selection to handle conveyor load safely and efficiently.
Tips for Accurate Conversion
- Always verify the power factor (PF). Motors with capacitors may have PF >0.9.
- Consider motor efficiency (η) if calculating mechanical output; often 85–95%.
- Use correct voltage reference: line-to-line for three-phase, line-to-neutral for single-phase.
- Check manufacturer datasheets for VA or HP ratings to ensure compatibility.
