Energy conversion is a fundamental concept in electrical and physical sciences, crucial for engineering applications. Converting Joules (J) into Volts (V) requires capacitance or charge; calculators simplify this process.

Joules to Volts Calculator

Energy: Unit: Charge: Charge unit:

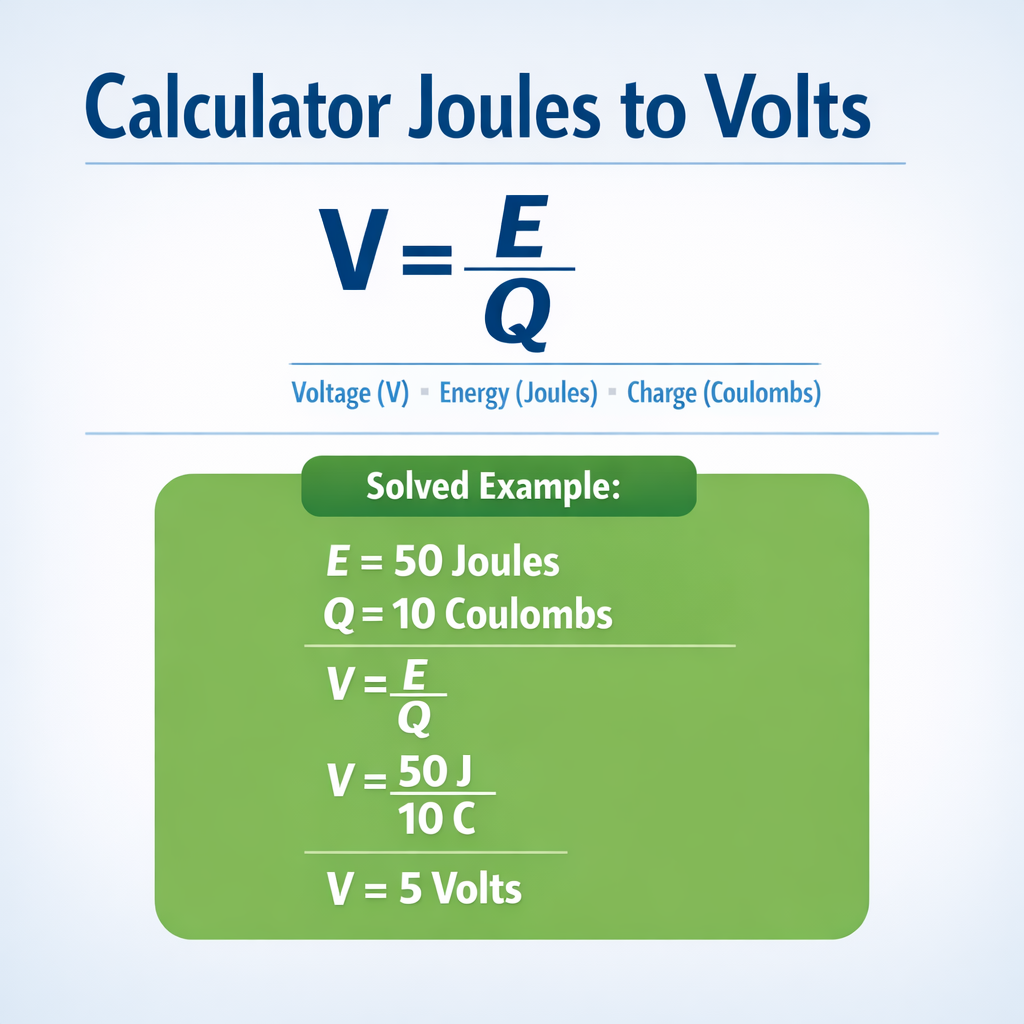

Formula used

V = J / Q, where V is voltage, J is energy in joules, Q is charge in coulombs.

How to convert Ah or mAh to coulombs?

1 Ah = 3600 C. For mAh: mAh ÷ 1000 × 3600 = C.

Example

3600 J with 1 C → 3600 V. 3600 J with 1 Ah (3600 C) → 1 V.

Core Relationship Between Joules and Volts

To convert Joules into Volts, one must understand the relationship between energy, charge, and electric potential.

The fundamental equation is:

Where:

V= Voltage (Volts, V)
E= Energy (Joules, J)
Q= Electric charge (Coulombs, C)

This formula shows that 1 Joule per 1 Coulomb equals 1 Volt.

Alternative Relationship Using Capacitance

In systems where capacitors are involved, the following formula is applied:

Rearranging to calculate voltage from energy:

Where:

E= Stored energy (Joules, J)
C= Capacitance (Farads, F)
V= Voltage (Volts, V)

This equation is widely used in electronics, power electronics, and energy storage systems because capacitors are fundamental energy-storing devices.

Variables Explained in Detail

To avoid ambiguity, each parameter in the formulas must be fully understood:

1.Joule (J)

2.Volt (V)

Defined as: 1V=1J/C.
Represents the potential difference between two points in an electric field.
Common ranges:
- Electronics: 1 V – 24 V
- Power supplies: 110 V – 240 V
- High-voltage systems: 1 kV – 1000 kV

3.Coulomb (C)

Defined as: 1C=6.242×10¹⁸ electrons.
Represents electric charge flow in circuits.
Common values: microcoulombs (µC), millicoulombs (mC).

4.Capacitance (C, Farads)

Defined as:
Represents a capacitor’s ability to store charge per unit voltage.
Practical ranges:
- Small capacitors: pF – µF
- Power capacitors: mF – F

Extended Conversion Tables: Joules to Volts

Since the relationship between Joules and Volts depends on charge (Q) or capacitance (C), we provide reference tables for both methods.

Table 1: Conversion from Joules to Volts (Based on Charge)

Formula used:

Energy (Joules)	Charge (Coulombs)	Voltage (Volts)
1 J	1 C	1 V
1 J	0.5 C	2 V
1 J	0.1 C	10 V
10 J	1 C	10 V
10 J	2 C	5 V
10 J	0.5 C	20 V
50 J	10 C	5 V
100 J	1 C	100 V
100 J	10 C	10 V
1000 J	100 C	10 V
5000 J	250 C	20 V
10000 J	500 C	20 V

Table 2: Conversion from Joules to Volts (Based on Capacitance)

Formula used:

Energy (Joules)	Capacitance (Farads)	Voltage (Volts)
0.001 J	1 mF (0.001 F)	44.7 V
0.01 J	1 mF	141.4 V
0.1 J	1 mF	447.2 V
1 J	1 mF	1414.2 V
1 J	100 µF (1e-4 F)	4472.1 V
10 J	1 mF	4472.1 V
10 J	100 µF	14142.1 V
100 J	1 F	14.1 V
100 J	0.1 F	44.7 V
100 J	10 mF (0.01 F)	141.4 V
1000 J	1 F	44.7 V
1000 J	10 F	14.1 V

These tables illustrate how the same energy value can result in vastly different voltages depending on the system’s charge capacity or capacitance.

Step-by-Step Real-World Applications

To demonstrate practical use, let’s explore two detailed real-world scenarios where converting Joules to Volts is essential.

Case 1: Defibrillator Energy to Voltage

A medical defibrillator delivers controlled energy pulses to restore a patient’s normal heart rhythm. Typical stored energy values are 200 J – 400 J, stored in a capacitor of approximately 100 µF.

Given:

Result: The capacitor must charge to 2000 Volts to deliver 200 J of energy.

This aligns with typical defibrillator designs, which operate between 1500 V – 5000 V depending on the model.

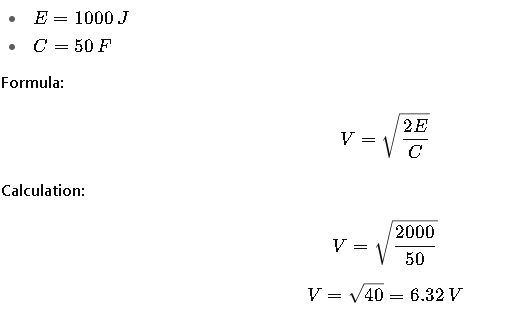

Case 2: Supercapacitor in Renewable Energy Storage

A renewable energy system uses a 50 F supercapacitor to temporarily store solar energy. The energy storage target is 1000 J.

Given:

Result: The capacitor requires only 6.3 V to store 1000 J, demonstrating how large capacitance lowers voltage needs.

This is critical in solar, wind, and hybrid storage systems, where safety and efficiency demand low-voltage, high-capacitance configurations.

Table 3: Joules to Volts (Small Charge Systems)

Energy (J)	Charge (C)	Voltage (V)
0.001 J	0.001 C	1 V
0.001 J	0.0001 C	10 V
0.01 J	0.001 C	10 V
0.01 J	0.0001 C	100 V
0.1 J	0.001 C	100 V
1 J	0.001 C	1000 V
10 J	0.01 C	1000 V
100 J	0.01 C	10000 V

This table is particularly relevant for particle accelerators and static discharge studies where very small charges are involved.

Table 4: Joules to Volts (Capacitance-Based, Large Capacitors)

Energy (J)	Capacitance (F)	Voltage (V)
10 J	10 F	1.41 V
50 J	50 F	1.41 V
100 J	100 F	1.41 V
500 J	100 F	3.16 V
1000 J	200 F	3.16 V
2000 J	500 F	2.83 V
5000 J	1000 F	3.16 V
10000 J	2000 F	3.16 V

Such values are applicable in supercapacitor banks for electric vehicles, regenerative braking, and grid stabilization.

Frequently Asked Questions (FAQ) – Calculator Joules to Volts

Q1: What is a Joules to Volts calculator?
A Joules to Volts calculator is a tool that converts energy measured in Joules into electrical potential (Volts). It simplifies calculations for engineers, students, and professionals by providing precise voltage values based on stored energy, charge, or capacitance.

Q2: Why do I need a Joules to Volts conversion?
Voltage determines how much energy can be delivered or stored in an electrical system. Converting Joules to Volts helps design circuits, capacitors, batteries, and energy storage systems safely and efficiently.

Q3: Does voltage depend on capacitance or charge?
Yes. The voltage produced from a given amount of energy varies depending on either the electrical charge flowing through the system or the capacitance of the components storing the energy.

Q4: What are common applications of Joules to Volts conversions?
Common applications include:

Medical devices, such as defibrillators.
Renewable energy storage, like supercapacitors in solar or wind systems.
Electric vehicle battery packs.
High-voltage transmission and distribution systems.
Electronics and semiconductor circuit design.

Q5: Can small energy amounts produce high voltage?
Yes. Even tiny amounts of energy can generate very high voltage if the charge or capacitance is very small, which is why electrostatic discharges can be dangerous despite low energy levels.

Q6: Is this conversion relevant for everyday electronics?
Absolutely. Everyday devices like smartphones, laptops, and household batteries rely on precise energy-to-voltage calculations to ensure safe operation and maximize efficiency.

Q7: Are there safety standards related to voltage and energy?
Yes. International standards define safe voltage limits for humans and equipment. Compliance with IEC, IEEE, and NIST guidelines ensures that energy stored or delivered does not create hazards.
