In three-phase systems, L-L and L-N voltage calculations ensure proper equipment selection and safe installations.
They influence load balance, transformer connections, and protection setup—this guide explains formulas, values, and real applications.

Extensive Tables of Common L-L and L-N Voltage Values

The following tables list standard voltages used in electrical systems around the world. These values are based on IEC, ANSI, and IEEE standards, including IEC 60038 and ANSI C84.1. These standards define preferred voltage levels for transmission and distribution.

Table 1: Common L-L (Line-to-Line) Voltages by System Type

Table 2: Derived L-N (Line-to-Neutral) Voltages

These are calculated from the L-L values using the √3 (1.732) factor for Wye (Star) systems.

Note: In Delta systems, there is no neutral connection, so L-N voltage does not exist or is artificial via grounding transformers.

Key Formulas for L-L and L-N Voltage Calculations

To perform accurate voltage conversions and verifications, these formulas are essential. They apply to balanced three-phase systems.

Formula 1: L-L to L-N Conversion (for Wye Systems)

Formula 2: L-N to L-L Conversion (for Wye Systems)

Same variables apply as above. Useful when calculating the expected line voltage from known single-phase supplies.

Formula 3: Phase Voltage from Line Voltage (Balanced Load)

This is especially useful for determining motor phase voltages.

Formula 4: Power Calculation in Three-Phase Systems

• For Line-to-Line Supply (Balanced Load):

• For Line-to-Neutral Supply (Balanced Load):

Where:

Formula 5: Voltage Drop Calculation

Where

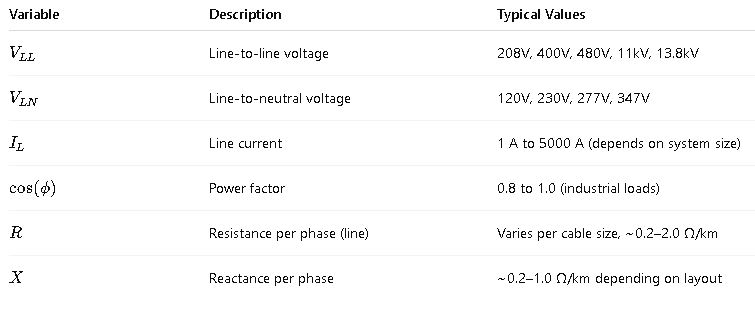

Explanation of Variables and Typical Values

Real-World Examples and Applications

Example 1: Commercial Office Building – Voltage Conversion and Load Design

Scenario:
A commercial building in the U.S. uses a 208V three-phase system. The lighting system operates at 120V. Determine the necessary line-to-neutral voltage and verify compatibility.

Solution:

Interpretation:
The line-to-neutral voltage is 120V, perfect for lighting circuits and receptacles in the U.S. This validates the Wye transformer secondary setup used.

Example 2: Industrial Motor Connection – Verifying Delta vs Wye Supply

Scenario:
An industrial facility has a 480V three-phase supply. A new motor rated at 277V is to be installed. Can the motor be connected directly?

Step 1: Identify system type

• 480V suggests L-L voltage in Wye configuration.

Step 2: Calculate L-N voltage

Step 3: Match with motor

• Motor is rated at 277V → suitable for L-N connection.

Conclusion:
Yes, the motor can be safely connected to the system, assuming a Wye transformer with accessible neutral. Ensuring this avoids phase mismatch or insulation issues.

System Design Considerations for L-L and L-N Voltages

When designing electrical systems, selecting between L-L and L-N connections has significant implications:

Line-to-Line (L-L) Systems

• Advantages:
  • Higher voltage means lower current for the same power, reducing conductor size.
  • Typically used for motors and large three-phase equipment.
  • No neutral conductor required (Delta configuration).
• Challenges:
  • Not suitable for standard single-phase devices without a separate transformer.
  • Voltage imbalances can affect equipment performance.

Line-to-Neutral (L-N) Systems

• Advantages:
  • Supports both single-phase and three-phase loads.
  • Neutral available for safety grounding and split-phase usage.
• Challenges:
  • Requires four wires (three phases + neutral).
  • Neutral loading must be carefully managed to avoid overheating.

Voltage Measurement Techniques and Tools

Accurate voltage calculation often depends on precise measurement. Here are the most used tools:

Tip:

Always measure across terminals marked L1-L2 (for L-L) or L1-N (for L-N) to ensure correct identification.

Voltage Configuration Diagrams

Wye (Star) System Diagram

• L-L voltage: measured between L1-L2, L2-L3, L3-L1.
• L-N voltage: measured from each phase to neutral (N).

Delta System Diagram

• No neutral
• Only L-L voltage is present.

These configurations affect transformer selection, grounding, protection coordination, and energy metering.

Transformer Configurations and Their Impact

Transformer windings determine available voltage types:

Each topology has implications for grounding, fault currents, and overcurrent protection.

Standards and International Voltage Compliance

Understanding local and international voltage standards is crucial when using L-L and L-N voltage calculators. Some of the key references include:

• IEC 60038 – Standard Voltages (used globally)
  • Link to standard
• IEEE Std. 141 (Red Book) – Electric Power Distribution for Industrial Plants
  • IEEE Power Standards
• ANSI C84.1 – American National Standard for Electric Power Systems and Equipment
  • ANSI Info
• NEC (NFPA 70) – National Electrical Code (U.S.)
  • NFPA Electrical Code

These define preferred voltages, tolerances (typically ±5%), and system grounding methods.

When to Use a L-L and L-N Voltage Calculator

A digital calculator or web-based tool is especially useful in:

• System commissioning – ensuring voltage output is within design tolerances.
• Transformer sizing – determining secondary voltages from a known primary.
• Load balancing – calculating single-phase and three-phase voltage needs.
• Motor installations – validating compatibility with supply voltage.
• Troubleshooting – identifying voltage imbalances, missing phases, or wrong transformer connections.

Many tools today incorporate automatic conversion between L-L and L-N voltages and include power factor, frequency, and system configuration inputs.

Best Practices for Engineers

1. Always confirm transformer configuration before using calculator values.
2. Account for voltage drop in long cable runs when determining usable L-N voltages.
3. Use true RMS tools for non-sinusoidal loads with harmonics.
4. Cross-check calculated vs. measured values especially on secondary circuits.
5. Document your findings for compliance audits and safety records.
