Understanding the conversion between volt-amperes (VA) and kilovolt-amperes (kVA) is crucial for electrical engineers. It ensures accurate sizing of transformers, generators, and uninterruptible power supplies (UPS).
VA ↔ kVA Calculator
What is kVA?
Why convert VA to kVA?
1. VA to kVA Conversion Table
The relationship between VA and kVA is straightforward:
1 kVA = 1,000 VA
This means that to convert VA to kVA, one divides the VA value by 1,000. Below is a comprehensive table illustrating this conversion for various common VA values:
| VA (Volt-Amperes) | kVA (Kilovolt-Amperes) |
|---|---|
| 100 | 0.1 |
| 150 | 0.15 |
| 200 | 0.2 |
| 250 | 0.25 |
| 300 | 0.3 |
| 400 | 0.4 |
| 500 | 0.5 |
| 600 | 0.6 |
| 750 | 0.75 |
| 800 | 0.8 |
| 1,000 | 1.0 |
| 1,500 | 1.5 |
| 2,000 | 2.0 |
| 2,500 | 2.5 |
| 3,000 | 3.0 |
| 4,000 | 4.0 |
| 5,000 | 5.0 |
| 6,000 | 6.0 |
| 7,500 | 7.5 |
| 8,000 | 8.0 |
| 10,000 | 10.0 |
| 15,000 | 15.0 |
| 20,000 | 20.0 |
This table is particularly useful for quickly referencing the conversion between VA and kVA without the need for manual calculations.
2. Formulas for VA to kVA Conversion
2.1 Basic Conversion Formula

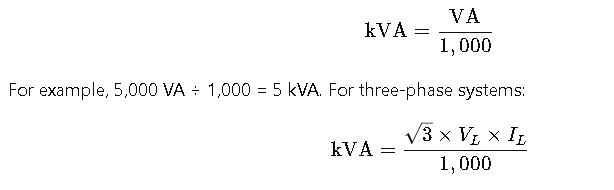

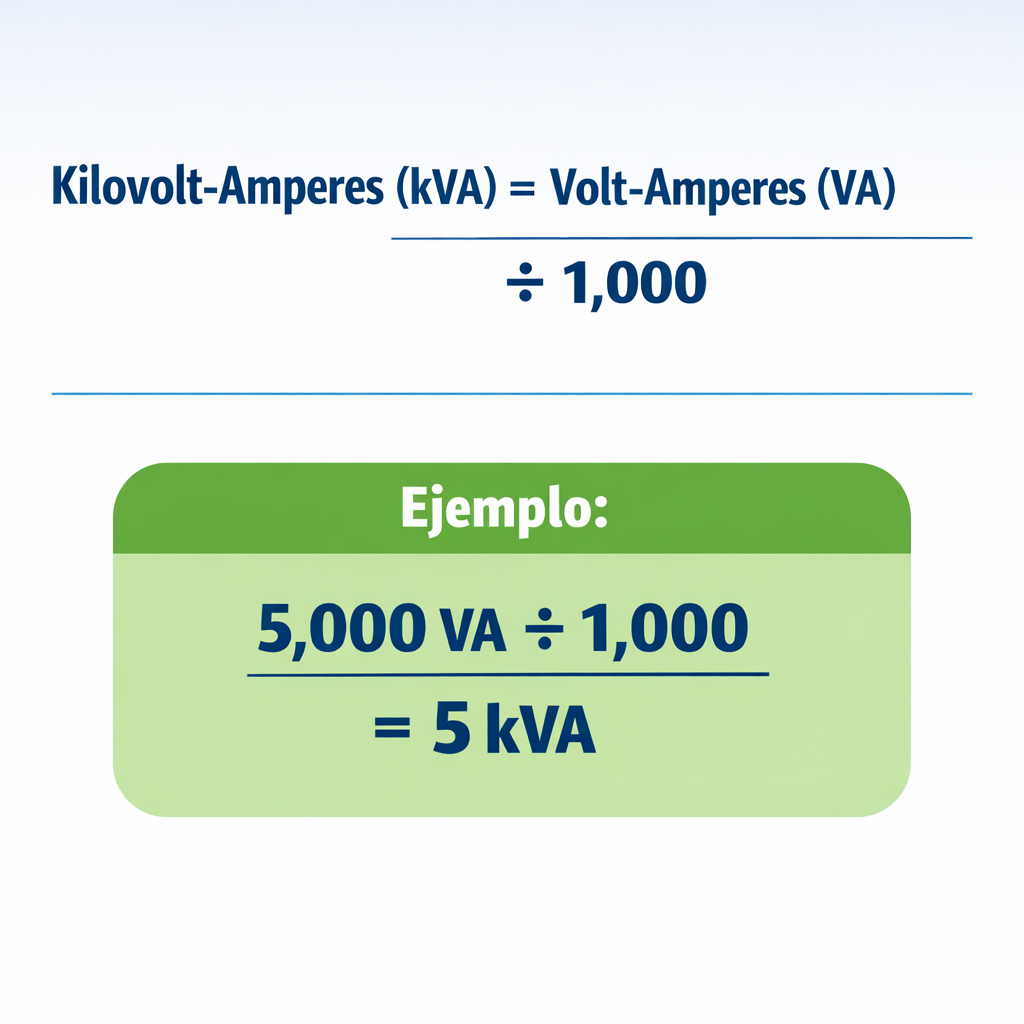

The fundamental formula to convert VA to kVA is:
kVA = VA / 1,000
This formula applies to both single-phase and three-phase systems.
2.2 Single-Phase System
In a single-phase system, the apparent power (S) in VA is calculated as:
S (VA) = V × I
Where:
- V = Voltage in volts (V)
- I = Current in amperes (A)
To convert this to kVA:
S (kVA) = (V × I) / 1,000
2.3 Three-Phase System
For a three-phase system, the apparent power (S) in VA is:
S (VA) = √3 × V_L × I_L
Where:
- √3 ≈ 1.732 (a constant)
- V_L = Line-to-line voltage in volts (V)
- I_L = Line current in amperes (A)
To convert this to kVA:
S (kVA) = (√3 × V_L × I_L) / 1,000
3. Real-World Examples
Example 1: Sizing a Transformer for a Residential Building (Single-Phase)
Scenario: A residential building requires a transformer to supply power. The system operates at 240 V, and the total current demand is 100 A.
Calculation:
S (VA) = V × I = 240 V × 100 A = 24,000 VA
S (kVA) = 24,000 VA / 1,000 = 24 kVA
Conclusion: A transformer rated at 24 kVA is suitable for this application.
Example 2: Sizing a Generator for an Industrial Facility (Three-Phase)
Scenario: An industrial facility requires a generator to supply power. The system operates at 480 V (line-to-line), and the total current demand is 150 A.
Calculation:
S (VA) = √3 × V_L × I_L = 1.732 × 480 V × 150 A = 124,416 VA
S (kVA) = 124,416 VA / 1,000 = 124.416 kVA
Conclusion: A generator rated at 125 kVA would be appropriate for this facility.
4. Additional Considerations
4.1 Power Factor
The power factor (PF) is a crucial factor in determining the real power (kW) from apparent power (kVA). The relationship is:
kW = kVA × PF
For purely resistive loads, PF = 1. For inductive or capacitive loads, PF is typically less than 1.
4.2 Implications for Equipment Sizing
Accurate conversion between VA and kVA ensures proper sizing of electrical equipment, preventing overloading and ensuring efficiency.
4.3 Standards and Regulations
Adhering to industry standards and regulations, such as those set by the IEEE and IEC, is essential when performing these conversions and sizing equipment.
5. External Resources
- Inch Calculator: VA to kVA Calculator
- RapidTables: VA to kVA Conversion Calculator
- Wikipedia: Volt-ampere
Frequently Asked Questions (VA to kVA Conversion)
1. What is the difference between VA and kVA?
Answer: VA (volt-amperes) represents apparent power, while kVA (kilovolt-amperes) is simply VA divided by 1,000. Both units measure apparent power, not real power. VA is commonly used for smaller loads, and kVA for larger equipment like transformers and generators.
2. How do I convert VA to kVA?
Answer: Use the formula:
3. Do I need to consider power factor when converting VA to kVA?
Answer: No. VA to kVA conversion does not involve the power factor. However, if you want to calculate real power in kW from kVA, then:
where PF is the power factor (0–1).
4. What is the difference between kVA and kW?
Answer: kVA measures apparent power, while kW measures real power actually consumed. Apparent power includes reactive power caused by inductive or capacitive loads. Real power is always ≤ apparent power.
5. Why is VA used instead of kW in some calculations?
Answer: VA represents the total load a device draws from the supply, including both real and reactive components. Equipment like transformers and UPS are rated in VA or kVA because they must handle the total load, not just the real power.
6. How do I size a transformer using VA or kVA?
Answer: Calculate the total load in VA or kVA. Use single-phase or three-phase formulas depending on your system. Then, choose a transformer rated slightly higher than the calculated value to account for safety margins and future expansion.
7. Can I use a single-phase formula for a three-phase system?
Answer: No. Single-phase formula (S = V × I) does not account for phase-to-phase voltage relationships. For three-phase systems, always use:
8. What are typical VA to kVA conversions for common appliances?
| Appliance | VA | kVA |
|---|---|---|
| Laptop Charger | 65 | 0.065 |
| LED TV | 150 | 0.15 |
| Small AC Unit | 1,000 | 1 |
| Microwave Oven | 1,200 | 1.2 |
| Residential HVAC | 5,000 | 5 |
| Industrial Motor | 50,000 | 50 |
9. Are there online calculators for VA to kVA?
Answer: Yes, reliable online calculators include:
10. Does frequency (Hz) affect VA to kVA conversion?
Answer: No, frequency does not affect the VA to kVA conversion. However, equipment ratings may differ depending on the system frequency (50 Hz vs 60 Hz), which affects efficiency and thermal limits.
