The total area needed for solar panel installation is vital for effective PV system design and planning. Accurate area estimation ensures optimal panel placement, maximizes energy harvest, and prevents shading or structural conflicts.
Total Area Required for Solar Panel Installation
Extensive Tables of Common Values for Solar Panel Installation Area Calculations
To start, it’s essential to know typical panel sizes, wattages, and efficiencies used in residential, commercial, and utility-scale installations. Below are comprehensive tables with values used for total area estimation.
Table 1: Common Solar Panel Specifications
| Panel Type | Power Rating (W) | Length (m) | Width (m) | Area per Panel (m²) | Efficiency (%) | Typical Use |
|---|---|---|---|---|---|---|
| Monocrystalline | 320 | 1.65 | 0.99 | 1.63 | 19 – 22 | Residential, Commercial |
| Polycrystalline | 300 | 1.65 | 0.99 | 1.63 | 15 – 18 | Residential, Commercial |
| Thin-Film | 150 | 1.20 | 0.60 | 0.72 | 10 – 12 | Large scale, BIPV |
| High-Efficiency | 400 | 1.70 | 1.05 | 1.79 | 22 – 24 | Premium residential |
| Utility Scale | 500 | 2.00 | 1.00 | 2.00 | 18 – 20 | Utility-scale solar farm |
Table 2: Typical Solar Panel Area vs System Capacity
| System Capacity (kW) | Number of Panels (320W) | Total Panel Area (m²) | Estimated Installation Area (m²)¹ |
|---|---|---|---|
| 1 | 4 | 6.52 | 7.8 |
| 3 | 10 | 16.3 | 19.6 |
| 5 | 16 | 26.1 | 31.3 |
| 10 | 32 | 52.3 | 62.7 |
| 50 | 156 | 254.3 | 305 |
| 100 | 312 | 508.1 | 610 |
¹Installation area considers spacing, access, mounting system clearance (~20% extra)
Table 3: Common Spacing and Layout Parameters for PV Arrays
| Parameter | Typical Value | Explanation |
|---|---|---|
| Panel Tilt Angle | 10° to 35° | Depends on latitude and roof pitch |
| Row-to-Row Spacing (N-S) | 1.5 to 3 meters | Prevents shading between rows |
| Access Path Width | 0.5 to 1 meter | For maintenance access |
| Mounting Structure Margin | 0.1 to 0.2 meters | Space between panel edges and racks |
Formulas for Calculating Total Area Required for Solar Panel Installation
The fundamental equation for determining the total area required involves calculating the area occupied by the panels and the additional space for structural and operational needs.
Core Formula:

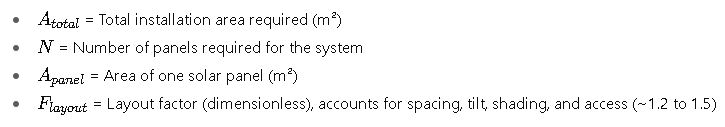

Where:
Step 1: Calculate Number of Panels N
Given a desired system size
in watts and panel power rating
Variables:
Example: For a 5 kW system using 320 W panels:
Step 2: Calculate Panel Area ApanelA_{panel}Apanel
For rectangular panels:
Where:
- L= Panel length (m)
- W= Panel width (m)
Typical panel size ~1.6 m².
Step 3: Apply Layout Factor
The layout factor accounts for:
- Tilt angle increasing footprint due to panel tilt
- Spacing between rows to avoid shading (especially for fixed-tilt ground arrays)
- Maintenance access paths
- Mounting hardware space
The layout factor is estimated by:
Where:
- S= Shading/spacing factor (0.15 – 0.30)
- M= Maintenance clearance factor (0.05 – 0.10)
For rooftop fixed installations:
For ground-mounted, tilt-adjusted arrays:
Additional Considerations:
Tilt Impact on Footprint
When panels are tilted, the horizontal ground area covered increases:
Where θ is the tilt angle in degrees.
Combined Total Area Formula Incorporating Tilt:
Where:
includes shading and access factors

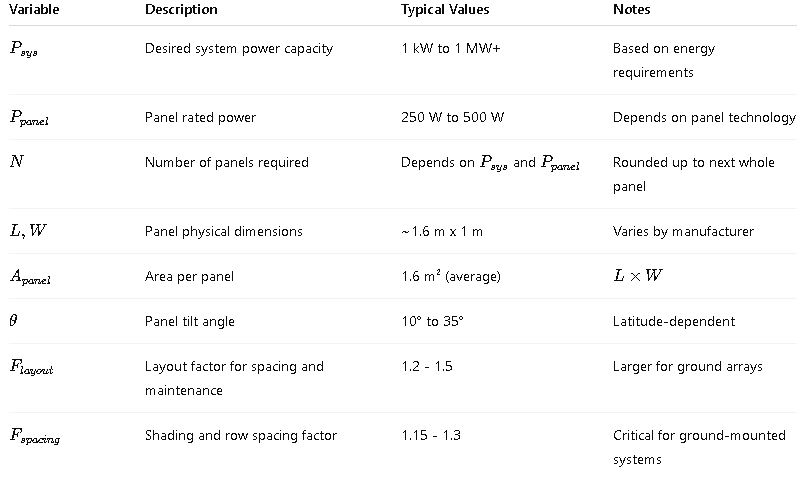

Explanation of Variables and Typical Values
Real-World Examples of Total Area Calculation
Example 1: Residential Rooftop Installation (5 kW System)
- System size: 5 kW
- Panel rating: 320 W
- Panel dimensions: 1.65 m x 0.99 m →
- Tilt angle: 25°
- Layout factor: 1.2 (rooftop spacing and access)
Step 1: Calculate number of panels
Step 2: Calculate footprint considering tilt
Step 3: Calculate total area
Interpretation: About 35 m² of rooftop space is needed to install a 5 kW system with these panels and layout conditions.
Example 2: Ground-Mounted Commercial Solar Farm (500 kW System)
- System size: 500 kW
- Panel rating: 400 W (high-efficiency)
- Panel dimensions: 1.70 m x 1.05 m → Apanel
- Tilt angle: 30°
- Layout factor: 1.4 (due to shading and maintenance access)
Step 1: Calculate number of panels
Step 2: Calculate panel footprint with tilt
Step 3: Calculate total area
Interpretation: Approximately 3600 m² (0.36 hectares) is required for this 500 kW ground-mounted installation, including spacing for optimal performance.
Advanced Considerations and Additional Factors
Impact of Geographic Location and Latitude
- Higher latitudes require steeper tilt angles, increasing footprint.
- Near equator installations use flatter angles, reducing area.
Shadow Analysis and Row Spacing
- PV arrays must be spaced to avoid shading during low sun angles.
- Solar geometry calculations (solar altitude and azimuth) define minimum row spacing:
Where:
- D= Row-to-row spacing
- H= Panel height (vertical dimension adjusted for tilt)
- α= Solar elevation angle at critical times (e.g., winter solstice morning)
System Losses and Efficiency
Higher efficiency panels reduce area requirements for a given power output, impacting N and
Mounting Systems and Structural Design
- Roof strength and material dictate maximum panel weight and installation style.
- Ground mounts may require foundations increasing space but easing tilt adjustment.
