Three-phase Voltage Drop Calculation

Three-phase voltage drop calculation determines precise electrical losses in power systems, ensuring efficiency and safety. Understand the essentials deeply professionally.

This article reveals formulas, tables, examples, and practical applications empowering engineers with clear-cut guidelines for optimal three-phase voltage loss management.

AI-powered calculator for Three-phase Voltage Drop Calculation

Example Prompts

• Calculate drop for 50A over 500m with R=0.2 Ω/km, X=0.08 Ω/km, PF=0.95
• Determine voltage loss for 100A load, 1 km conductor length, cos φ=0.90
• Voltage drop for 75A current with reactance 0.1 Ω/km, resistance 0.25 Ω/km
• Estimate three-phase drop for 60A over 0.8 km, using power factor 0.85

Understanding Three-phase Voltage Drop Calculation

We begin by exploring the fundamental principles behind voltage drop in three-phase systems. Three-phase systems, widely used in industrial and commercial applications, require precise calculation of voltage losses in the conductors.

Voltage drop represents the reduction in voltage as electric current travels through a conductor due to its inherent resistance and reactance. This article explains the principles, formulas, and methodologies used to calculate voltage drop and optimize system performance.

Essential Components of the Calculation

In three-phase voltage drop calculations, the key variables are the line current (I), conductor length (L), conductor resistance per unit length (R), reactance per unit length (X), and the load power factor represented by the phase angle (φ). Additionally, the constant √3 (approximately 1.732) is fundamental, as it accounts for the phase relationship in balanced three-phase systems.

These variables interact within the voltage drop formula, which quantifies energy losses along the transmission line. A clear understanding of each component is essential for determining conductor sizes and ensuring compliance with electrical regulations.

Standard Formula for Three-phase Voltage Drop

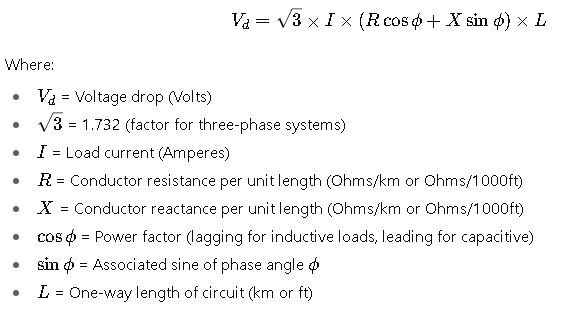

The commonly used formula for calculating the voltage drop (V_drop) in a balanced three-phase system is:

• I is the load current (amps).
• R is the resistance per unit length (ohms per unit length; be sure to use consistent units).
• X is the reactance per unit length (ohms per unit length).
• L is the length of the conductor (in kilometers or miles, according to your R and X values).
• cos φ is the power factor (dimensionless), and sin φ is derived from φ: sin φ = √(1 – (cos φ)²).
• √3 (approximately 1.732) accounts for phase differences in three-phase systems.

Understanding this equation is critical for designing efficient electrical systems. By substituting the correct values and units into the equation, engineers can accurately predict voltage losses, enabling optimal conductor sizing and ensuring that devices receive the requisite voltage.

Additional Formula Considerations

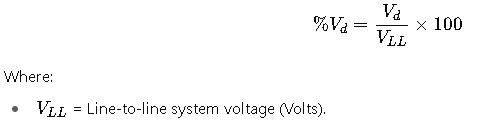

For some applications, calculating the percentage voltage drop (%V_drop) may be more useful. The following formula provides the percentage voltage drop relative to the system voltage (V_system):

• V_system is the system voltage (volts) at the load.
• %V_drop is the voltage drop expressed as a percentage of the system voltage.

This formula is essential during system design to verify that voltage drops remain within regulatory and operational limits, ensuring the safety and efficiency of the entire electrical system.

Design Considerations and Regulations

Electrical regulations and guidelines like those from the IEEE and NEC (National Electrical Code) stress that voltage drop should only be a small percentage of the system voltage. Many standards recommend that the total voltage drop for feeders and branch circuits should not exceed 3-5% to ensure efficient performance and safety in electrical distribution.

Adhering to these regulations is vital. Excessive voltage drops can lead to reduced performance of electrical equipment, increased energy consumption, and potential safety hazards. Proper calculation assists in choosing the right conductor size and material, such as copper or aluminum, based on their respective resistances and reactances.

Detailed Tables for Three-phase Voltage Drop Calculation

Below are detailed tables that describe typical conductor properties and calculated voltage drop results under various conditions. These tables provide a clear reference for designing three-phase electrical systems.

Table 1: Typical Conductor Properties

These values are approximate and can vary based on conductor size, temperature, and installation conditions. Always refer to manufacturer data and engineering standards when performing critical calculations.

Table 2: Voltage Drop Calculation Examples

These sample tables illustrate practical calculations and typical values used in electrical planning. Fine-tuning these values based on the specific installation conditions is essential for achieving optimal system performance.

Real-life Application Case Studies

Real-life case studies shed light on how three-phase voltage drop calculation is critical during the design and operation of electrical systems. Here are two detailed examples that illustrate its application.

Case Study 1: Industrial Manufacturing Facility

An industrial manufacturing facility requires a new three-phase distribution system installation. The design involves powering high-current machinery with sensitive controls and requires precise voltage management.

• Load Current, I = 80 A
• Conductor Length, L = 0.8 km
• Conductor Material: Copper with R = 0.18 Ω/km and X = 0.09 Ω/km
• Power Factor, cos φ = 0.92 (thus sin φ ≈ √(1-0.92²) ≈ 0.39)

Calculate the term components:
• R × cos φ = 0.18 × 0.92 = 0.1656 Ω/km
• X × sin φ = 0.09 × 0.39 = 0.0351 Ω/km
• Total per km = 0.1656 + 0.0351 = 0.2007 Ω/km

Now, substitute all values into the formula:
• V_drop = 1.732 × 80 A × 0.2007 Ω/km × 0.8 km
• V_drop ≈ 1.732 × 80 × 0.2007 × 0.8 = 22.2 V (approximately)

This calculated voltage drop of roughly 22.2 V is within acceptable margins for many industrial settings. Ensuring that the drop does not exceed system tolerances is crucial for both efficiency and equipment protection.

Case Study 2: Data Center Power Distribution

A modern data center design requires multiple three-phase feeders to deliver clean power to server racks. Voltage drop must be attentively managed to protect sensitive IT equipment.

• Load Current, I = 120 A
• Conductor Length, L = 1.2 km
• Conductor Material: Aluminum with R = 0.30 Ω/km and X = 0.10 Ω/km
• Power Factor, cos φ = 0.88 (thus sin φ ≈ √(1-0.88²) ≈ 0.47)

Step-by-step calculation:
• R × cos φ = 0.30 × 0.88 = 0.264 Ω/km
• X × sin φ = 0.10 × 0.47 = 0.047 Ω/km
• Combined impedance = 0.264 + 0.047 = 0.311 Ω/km

Now plug these values into the voltage drop formula:
• V_drop = 1.732 × 120 A × 0.311 Ω/km × 1.2 km
• V_drop ≈ 1.732 × 120 × 0.311 × 1.2 = 77.8 V (approximately)

In this data center example, the voltage drop is estimated at approximately 77.8 V. Given the critical nature of data center operations, engineers must evaluate whether this drop is acceptable or if conductor enhancements or system adjustments are necessary.

Additional Considerations in Voltage Drop Calculations

When performing voltage drop calculations, several additional factors should be considered to ensure robust and reliable system design:

• Temperature Effects: Conductor resistance increases with temperature, potentially leading to higher voltage drops than calculated under standard conditions.
• Conductor Bundling: In installations where multiple conductors are grouped together, mutual heating can affect resistance.
• Load Variability: Variations in load current throughout the operational cycle may impact voltage drop calculations. Peak loads require special attention.
• Installation Conditions: Factors such as conduit fill, ambient temperature, and conductor insulation type all influence accurate calculations.

Engineers often use simulation software and online calculators for complex systems. However, manual calculations remain vital for verifying results and designing safe electrical infrastructure.

Step-by-step Calculation Process

A thorough, step-by-step process is recommended to ensure accuracy in voltage drop calculations:

• Step 1: Identify all load parameters, including load current (I), conductor length (L), and load power factor (cos φ).
• Step 2: Obtain conductor specifications (R and X) from manufacturer datasheets or standardized tables.
• Step 3: Calculate the terms R × cos φ and X × sin φ. Use sin φ calculated from the power factor, when only cos φ is given.
• Step 4: Insert the values into the core formula: V_drop = √3 * I * (R × cos φ + X × sin φ) * L.
• Step 5: Solve for V_drop and compare it to acceptable limits defined by applicable electrical standards.
• Step 6: If necessary, adjust conductor sizes or materials to achieve a voltage drop within acceptable margins.

This systematic approach ensures that all variables are accurately accounted for and enhances the overall reliability of the electrical design.

Frequently Asked Questions (FAQs)

• What is the significance of using √3 in the formula?

  The √3 factor arises from the phase difference between the three phases in a balanced system. It converts per-phase values to line-to-line values.
• How do temperature variations affect voltage drop?

  Higher temperatures increase conductor resistance, leading to higher voltage drop. Corrections may be needed in hot environments using temperature coefficients.
• What power factor should be used?

  Use the actual load power factor. A lagging power factor is common in inductive loads. Accurate measurement or estimation is essential for precise calculations.
• Are the formulas applicable for both star and delta configurations?

  The provided formulas are designed for balanced Y (star) configurations. Additional modifications are needed for delta configurations.
• How do I choose the conductor material?

  Material selection depends on factors like cost, conductivity, and installation conditions. Copper and aluminum are the most common, each with distinct electrical properties.

For more detailed standards and guidelines, refer to reputable sources such as the IEEE and the National Fire Protection Association (NFPA).

Advanced Topics in Three-phase Voltage Drop Analysis

For seasoned engineers, additional analysis may include harmonic distortion effects, transient conditions, and conductor aging. These factors can alter conductor impedance over time, necessitating periodic re-evaluation of system performance.

• Harmonics: Non-linear loads can introduce harmonics that increase effective current levels, leading to higher voltage drop than anticipated by pure sinewave calculations.
• Transient Conditions: Startup currents and switching transients can cause momentary voltage drops. Designing for these conditions enhances system stability.
• Conductor Aging: Over time, environmental stresses may increase a conductor’s resistance. Regular maintenance and recalibration of voltage drop calculations can help mitigate unexpected issues.

By incorporating these advanced topics into voltage drop analysis, engineers can design systems that remain resilient and efficient throughout their operational lifespan. Such proactive planning is crucial in large-scale industrial or critical infrastructure projects.

Practical Software and Tools

Many reputable software programs can assist with voltage drop calculations. These tools often feature comprehensive input parameters, simulation capabilities, and built-in engineering standards to verify results. Some popular software and online calculators include:

• ETAP (Electrical Transient Analyzer Program)
• SKM Power Tools
• EasyPower
• Online calculators available on reputable electrical engineering sites

While these tools add efficiency and accuracy, cross-checking with manual calculations is always recommended for critical engineering projects. Leveraging multiple methodologies ensures a robust design that meets regulatory requirements and operational expectations.

Best Practices for Implementing Voltage Drop Solutions

Engineers are encouraged to follow best practices when designing systems sensitive to voltage drops:

• Regularly validate input data and update conductor properties based on current standards.
• Schedule periodic inspections and recalculations in systems experiencing significant temperature or load fluctuation.
• Implement redundancy where possible to account for unexpected load surges or faults.
• Document all assumptions and calculation steps to facilitate troubleshooting and system adjustments in the future.

Ensuring adherence to these best practices not only improves system reliability but also enhances safety and ensures long-term operational efficiency.

Integrating Voltage Drop Calculations with System Design

Electrical systems are complex, and voltage drop is only one aspect of a comprehensive design strategy. Integration with overall system planning involves:

• Considering voltage drop in transformer selection and installation practices.
• Aligning conductor sizing with short-circuit current ratings and thermal limits.
• Incorporating voltage drop data into power quality assessments to ensure all equipment receives stable voltage levels.
• Utilizing simulation models to predict dynamic behavior during load changes and transient events.

This holistic approach guarantees that the entire electrical distribution network is optimized, minimizing energy losses and operational disturbances.

Conclusion and Future Outlook

In today’s dynamic electrical grid landscape, accurate three-phase voltage drop calculation is indispensable for engineers. It forms the backbone of reliable power distribution, enabling system resilience amidst variable load conditions and environmental factors.

Continuous advancements in electrical engineering, coupled with digital simulation and real-time monitoring, promise further optimization of voltage drop management. Embracing these innovations paves the way for smarter, more efficient power systems, ensuring safety and performance now and in the future.

References and External Resources

• IEEE Official Website – for industry standards and publications.
• NFPA – for electrical safety codes and guidelines.
• Electrical Technology – a resource for electrical engineering fundamentals.

For further learning, consult textbooks on power system analysis and design, which often include chapters dedicated to voltage drop assessments and conductor sizing considerations.

Final Thoughts

In summary, three-phase voltage drop calculation is a critical element of modern electrical engineering, integral to system safety and efficiency. By understanding the formulas, applying proper tables, and regularly reviewing calculations, engineers can design robust systems for a wide range of applications.

This in-depth discussion not only covers the theory behind voltage drop calculations but also provides practical tools and examples to ensure you can implement sound engineering practices. Keep exploring, learning, and applying these guidelines to create safer and more efficient electrical systems.
