Arc Flash PPE Level Selector — NFPA 70E-Style, Input-Based Tool to Find Your Category

This tool determines PPE category based on NFPA 70E style input and arc flash calculations.

This article explains methodology, inputs, formulas, and examples for pragmatic PPE selection.

Arc Flash PPE Level Selector — Determine PPE Category from Incident Energy (NFPA 70E style)

Input method Incident Energy (cal/cm²)Estimate from Arcing Current & Clearing Time

Working distance (mm)

Incident energy (cal/cm²)

Source reference (optional)

Advanced options

Arcing current (kA)

Arcing duration / clearing time (s)

System voltage (V)

Electrode gap / enclosure gap (mm)

Estimation mode Standard estimateConservative estimate (+30%)

Estimate remark (optional)

Upload a data nameplate photo or single-line diagram to suggest values automatically.

📷 Fill values with AI photo

⚡ More electrical calculators Reiniciar Copiar Compartir

Please enter incident energy or choose estimate inputs to see PPE category.

🧠 Explain my result 🔍 Review my data

Formulas and methodology

Primary selection is based on incident energy at the worker's working distance (cal/cm²). PPE category mapping uses common practical ATPV thresholds: 1.2, 4, 8, 25, 40 cal/cm².

Approximate incident energy estimator (advanced, empirical):

Incident energy (cal/cm²) ≈ K · I_arc^1.5 · t / (d_m^1.5)
where K = 0.78 (empirical constant for conservative engineering estimate), I_arc in kA, t in s, d_m is working distance in meters.

Notes: The estimator is a conservative approximation for quick engineering judgement only. For final PPE selection use IEEE 1584 or measured data.

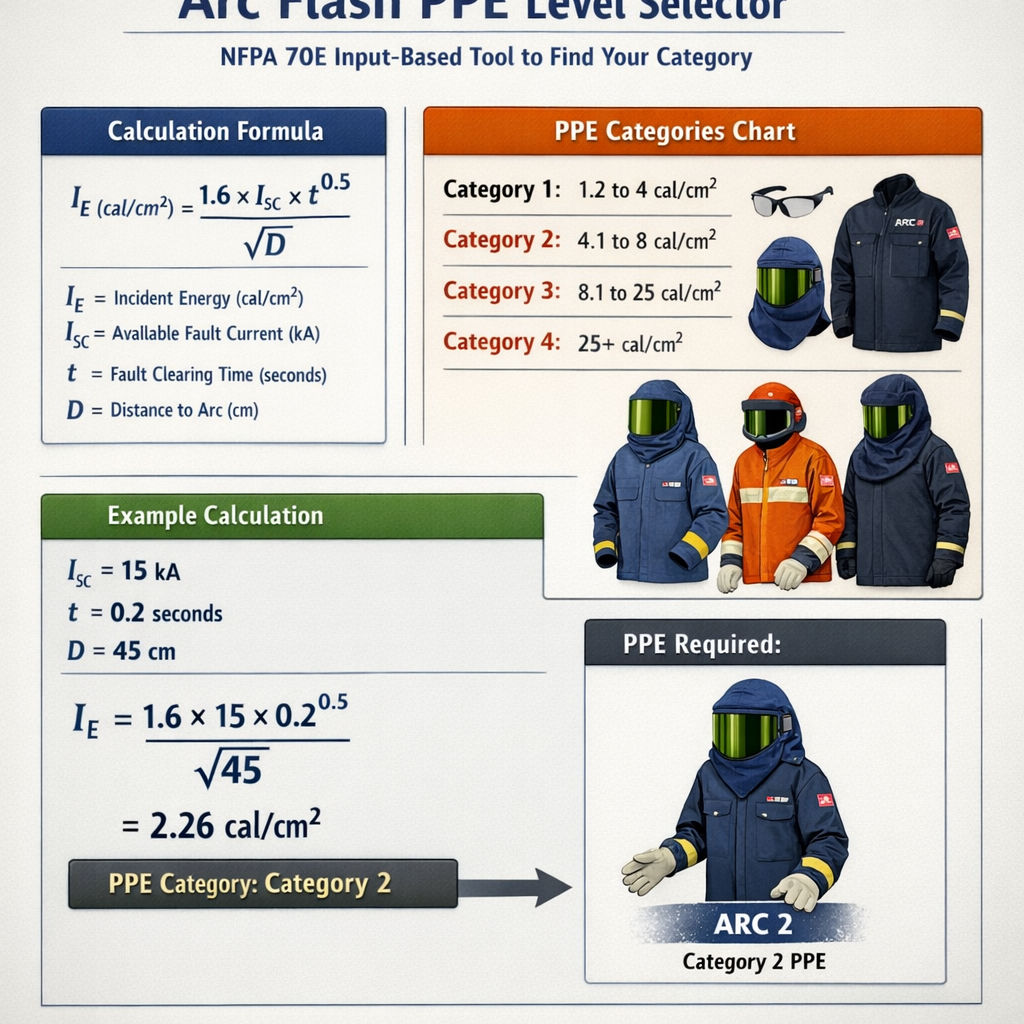

PPE Category	Practical minimum arc rating (ATPV) (cal/cm²)	Typical incident energy range (cal/cm²)
Category 0	No arc-rated clothing	≤ 1.2
Category 1	4 cal/cm²	>1.2 – 4
Category 2	8 cal/cm²	>4 – 8
Category 3	25 cal/cm²	>8 – 25
Category 4	40+ cal/cm²	>25

FAQ

Q: Can I use the estimator for final PPE selection?
A: The estimator provides a conservative engineering estimate only. For final selection use IEEE 1584 calculations, measured incident energy, or detailed arc flash study in accordance with NFPA 70E.

Q: Which working distance should I use?
A: Use the actual distance from worker's torso/face to the likely arc location (commonly 457 mm / 18 in for panel access). Document the working distance used in the job assessment.

Scope and operational concept of an NFPA 70E style PPE level selector

An Arc Flash PPE Level Selector converts site electrical parameters into a recommended protective clothing (PPE) requirement consistent with NFPA 70E principles. The selector uses systematic steps: determine available fault current, estimate arcing current, determine protective device clearing time, compute incident energy at worker distance, then select PPE whose ATPV (arc thermal performance value) equals or exceeds the incident energy. The tool must clearly flag assumptions, approximations and reference the applicable standards (NFPA 70E and IEEE 1584).Key functions expected from a professional selector:

• Structured input capture for voltage, fault current, equipment geometry, protective device curves, working distance, conductor gap and enclosure type.
• Use of accepted empirical models (e.g., IEEE 1584) or calibrated simplified models where full IEEE computation is not available.
• Clear output: incident energy (cal/cm²) at working distance, boundary distance, recommended ATPV/PPE or hazard/risk category, and traceable calculation steps and assumptions.
• Audit trail and links to normative references for compliance.

Required inputs and why each matters

Essential electrical inputs

• System nominal voltage (V) — influences arc formation and arcing current behavior.
• Available bolted fault current (Ibf, kA) — initial drive for arc current estimation.
• Protective device type and time-current characteristic — determines arc duration (t).
• System grounding and source impedance data — impacts arcing current magnitude.

Equipment geometry and human factors

• Working distance (D) — distance from arc to worker’s torso/face; incident energy decays with distance.
• Enclosure type and size (e.g., open rack, bucket, cubicle) and conductor gap — change the empirical constants used to derive arc current and energy.
• PPE ensemble baseline and layering — used to verify ATPV adequacy when comparing against incident energy.

Core calculation workflow (algorithm)

1. Validate inputs and determine whether a full IEEE 1584 calculation is feasible (all parameters available). 2. Compute arcing current (Ia) using IEEE 1584 empirical relationships or a validated approximation function Ia = f(Ibf, V, gap, enclosure). 3. Determine arc duration (t) from protective device characteristics (time-current curve or trip characteristics). For devices that clear on upstream settings, compute the actual clearing time at estimated Ia. 4. Compute incident energy (E) at working distance (D) using an empirical incident energy model derived from IEEE 1584 or a calibrated simplified formula. 5. Choose PPE: select garment ensemble with ATPV >= E or use NFPA 70E historical PPE categories mapping only if organizational policy requires category-style labeling. Provide required PPE items for each category or energy level. 6. Provide safety boundaries (arc flash boundary) and documentation for label generation.

Generic empirical formulas (symbolic)

Arcing current (Ia) = f(Ibf, V, gap, enclosure) — empirical model dependent upon electrode gap and enclosure geometry.

Arc flash boundary distance (R_boundary) is the distance at which an unprotected worker would receive 1.2 cal/cm² (typical threshold for second-degree burn):

Explanation of variables and typical values

• Ia — arcing fault current, in kA. Typical low-voltage values: 6–30 kA. Typical medium-voltage open-air arcs: 10–50 kA depending on system.
• Ibf — bolted fault current, kA. Typical plant maximum available fault currents: 5–50 kA.
• V — nominal system voltage (single or three-phase), volts (V). Examples: 208 V, 480 V, 4.16 kV.
• t — arc duration (seconds). Typical protective device clearing times: fuses 0.03–0.5 s depending on size and curve; breakers 0.05–0.5 s depending on settings and fault magnitude.
• D — working distance (m). Typical working distances: 0.305 m (12 in), 0.457 m (18 in), 0.762 m (30 in).
• K, α, β — empirical constants. For IEEE 1584-derived approximations K might be on order of 0.1–1.0 (unit conversion included); α commonly around 1.0–1.6; β commonly near 2.0 (inverse-square distance dependence). Values must be calibrated to IEEE 1584 curves or validated laboratory data when possible.
• E — incident energy, in cal/cm².

Note: The symbol formulas above present the functional dependency; precise coefficients and exponents are given by IEEE 1584 empirical tables or a professional arc flash calculation engine. Always document which model (IEEE 1584 2002 vs IEEE 1584-2018 vs an organizational simplified model) is used.

Mapping incident energy to PPE — typical organizational practice

Many organizations historically used NFPA 70E Hazard/Risk Categories (HRC) 0–4 with representative ATPV ensemble ratings. Since NFPA 70E (2015/2018) encourages using calculated incident energy compared against garment ATPV, organizations still often present a category-style mapping for operational simplicity.Important: This table is a commonly used mapping for operational labeling. The authoritative method in modern NFPA 70E is to compare calculated incident energy (cal/cm²) directly to garment ATPV ratings and to select garments with ATPV >= calculated incident energy. Where ATPV values are marginal or there is uncertainty, select next-higher ATPV or use additional mitigations.

Extensive typical value tables for quick reference

Worked examples — practical, step-by-step cases

Note: The calculations below use a simplified incident energy approximation for demonstration and training purposes only. They are not a substitute for a full IEEE 1584-based calculation or vendor certified arc flash study. When in doubt, use a certified arc flash calculation tool or an electrical engineer specialized in arc flash analysis.

Example 1 — Low-voltage distribution panel, 480 V three-phase

Scenario inputs:

• System voltage: 480 V three-phase
• Available bolted fault current (Ibf): 25 kA
• Estimated arcing current (Ia) for enclosed panel (approximation from typical models): 14 kA
• Protective device: molded-case breaker with expected clearing time t: 0.1 s at Ia
• Working distance (D): 0.457 m (18 in)
• Simplified empirical coefficient selected for demonstration: K = 0.5, α = 1.5, β = 2.0

Step 1 — Use the simplified incident energy formula:Plug values (units: Ia in kA, t in s, D in m). Calculation detail:

• Ia^α = 14^1.5 = 14 × sqrt(14) ≈ 14 × 3.7417 = 52.3838
• Numerator = K × Ia^α × t = 0.5 × 52.3838 × 0.1 = 2.61919
• D^β = 0.457^2 = 0.20865
• E = 2.61919 / 0.20865 ≈ 12.55 cal/cm²

Step 2 — Compare incident energy with ATPV and select PPE:

• Calculated incident energy: 12.55 cal/cm²
• Minimum ATPV requirement: choose garment ATPV >= 12.55 cal/cm²
• Typical available garment ATPV choices: 8 cal/cm² (insufficient), 25 cal/cm² (sufficient)
• Recommended ensemble: ATPV 25 cal/cm² garment ensemble (historic HRC 3 mapping), arc-rated hood, arc-rated gloves rated above the incident energy, leather protectors as required, and face protection.

Step 3 — Determine arc flash boundary (distance to 1.2 cal/cm²):

• sqrt(E/1.2) = sqrt(12.55 / 1.2) = sqrt(10.458) = 3.233
• R_boundary = 0.457 m × 3.233 = 1.478 m (≈58.2 inches)

Result summary (Example 1):

• Incident energy ≈ 12.6 cal/cm² at 18 in
• Recommended ATPV: ≥ 25 cal/cm² ensemble
• Arc flash boundary ≈ 1.48 m (58 in)
• Document assumptions: Ia estimated, K and exponents representative for demo, use IEEE 1584 for definitive numbers

Example 2 — Medium-voltage switchgear, 4.16 kV bus

Scenario inputs:

• System voltage: 4.16 kV three-phase
• Available bolted fault current (Ibf): 12 kA
• Estimated arcing current (Ia) from an IEEE 1584 approximate lookup for enclosed switchgear: 8.5 kA
• Protective device: upstream relay + circuit breaker expected clearing time t: 0.07 s
• Working distance (D): 0.762 m (30 in)
• Simplified empirical coefficient for demonstration: K = 0.75, α = 1.4, β = 2.0

Step 1 — Incident energy formula:Calculation detail:

• Ia^α = 8.5^1.4 — compute by exponent: ln(8.5)=2.140, ×1.4=2.996, exp(2.996)=20.012 (approx)
• Numerator = 0.75 × 20.012 × 0.07 = 1.0506
• D^2 = 0.762^2 = 0.5806
• E = 1.0506 / 0.5806 = 1.809 cal/cm²

Step 2 — ATPV selection:

• Calculated incident energy: ≈ 1.81 cal/cm²
• Minimum ATPV required: ≥ 1.81 cal/cm²
• Typical garments: 4 cal/cm² garments readily available (HRC 1 mapping), 8 cal/cm² optional for margin
• Recommended ensemble: ATPV 4 cal/cm² arc-rated shirt/pants or coverall, plus arc-rated face/eye protection; gloves if hand exposure anticipated.

Step 3 — Arc flash boundary:

• sqrt(1.809 / 1.2) = sqrt(1.5075) = 1.2278
• R_boundary = 0.762 × 1.2278 = 0.935 m (≈36.8 in)

Result summary (Example 2):

• Incident energy ≈ 1.81 cal/cm² at 30 in
• Recommended ATPV: ≥ 4 cal/cm² ensemble (for margin over 1.81)
• Arc flash boundary ≈ 0.94 m (37 in)
• Assumptions: empirical K and exponent selection for demo; use full IEEE 1584 for final compliance labeling

Best practices for implementing a PPE level selector tool

Data governance and traceability

• Maintain input provenance (fault studies, utility data, site measurements) and stamp each calculation with assumptions and model version (e.g., IEEE 1584-2018).
• Store device curves and calculation snapshots for audit and regulatory review.

Usability and operator safety features

• Require mandatory fields (working distance, available fault current, device clearing time) and prevent silent defaults that hide uncertainty.
• Produce clear labels: incident energy, working distance, arc flash boundary, recommended ATPV and PPE list, and date/version of the study.

Validation and calibration

• Validate simplified models against full IEEE 1584-calculations in representative scenarios. Keep validation reports.
• Where differences exceed organizational tolerance, require full-calculation path (IEEE 1584) rather than simplified model.

Regulatory and standard references (authoritative links)

• NFPA 70E: Standard for Electrical Safety in the Workplace — official NFPA resource and documentation: https://www.nfpa.org/70E (and code detail: https://www.nfpa.org/codes-and-standards/all-codes-and-standards/list-of-codes-and-standards/detail?code=70E)
• IEEE 1584 — Guide for Performing Arc-Flash Hazard Calculations (2018 revision): https://standards.ieee.org/standard/1584-2018.html
• OSHA general electrical safety guidance: https://www.osha.gov/electrical
• ANSI/ASTM arc rating and testing information (NFPA-referenced garments): consult manufacturers and laboratory test reports for ATPV certification details.

Common caveats and limitations

• Simplified formulae and coefficients are for demonstration or conservative screening only. Use IEEE 1584 or validated vendor software for final labeling and compliance.
• ATPV certification applies only to specific garments as tested by manufacturers; selecting a garment requires verifying the ATPV value on manufacturer documentation.
• Device clearing times vary with actual fault magnitude and coordination settings; always use device curves or recorded clearing times where possible.

Implementation checklist for an NFPA 70E style selector tool

1. Define required inputs with mandatory validation and unit checks (V, kA, seconds, meters/inches).
2. Allow selection of calculation mode: full IEEE 1584 vs. simplified/organizational model.
3. Include a library of device time-current curves and a method to compute clearing time at the estimated arcing current.
4. Include garment ATPV database with manufacturer certificates and allow matching ATPV to incident energy automatically.
5. Output a printable label template containing incident energy, working distance, arc flash boundary, recommended PPE, date of study, and calculation model version.
6. Log inputs, outputs, and assumptions for audit purposes.

Summary operational guidance and next steps

Use an NFPA 70E style PPE Level Selector to reduce uncertainty when planning energized work: gather accurate fault study data, confirm protective device characteristics, measure working distance, and select PPE based on calculated incident energy compared to tested ATPV values. For final compliance and site labeling, always use a validated calculation method (IEEE 1584-compliant) or engage an electrical engineer experienced with arc flash hazard analysis.References and authority documents should be included in every study output for traceability. Regularly review changes to NFPA 70E and IEEE 1584 editions, and update tool models and coefficients accordingly to maintain alignment with consensus standards and best practices.
